SUPPORTS

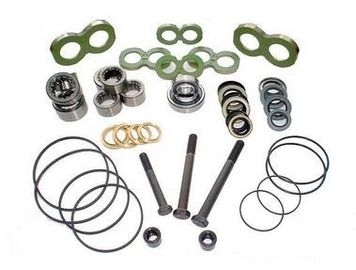

Part No.              Description   391-0381-040 P31 BEARING(X69-40) 391-0381-077 P51 BEARING(X69-58) 391-0381-059 P50 BEARING 391-0381-068 P30 BEARING 391-2185-012 Thrust Plate 391-2185-031 Thrust Plate/P31 391-2185-953 Thrust Plate/P315 391-2185-955 Thrust Plate/P365 391-2185-956 Thrust Plate/P330 391-2185-957 Thrust Plate/P350 391-2584-051 SEAL RETAINER 391-3383-020 MOTOR SEAL RETAINER 391-0482-195 P315 Bushing 27x24.2x30 391-0482-306 P330 Bushing 30x27.3x38 391-0482-307 P365Bushing 42.5x38.5x44.5 391-0482-308...

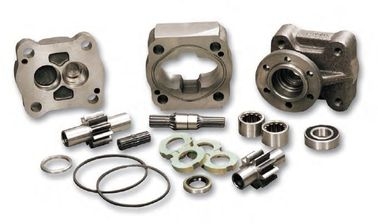

 C101/C102/G101/G102 Dump Pump which can be 100% interchangeable with Parker Commercial etc. Dump Pump.   * P30/P31/P50/P51/P75/P76/P315/P330/P350/P365 gear pump and motor which can be 100% interchangeable with Parker Commercial etc. gear pump and motor. * Gear pump casting parts such as Port End Cover, Shaft End Cover, Gear Housing, Bearing Carriage, all the...

Part # Description 391-0381-059 ∅1.937" O.D. (391-0381-905) C101/102 P25/50/51 Roller Bearing S1032 391-0381-068 ∅1.687" O.D. (391-0381-906) G101/102 P20/30/31 Roller Bearing Y1032 391-0381-060 ∅2.322" O.D. P37/75/76 Roller Bearing R1032 391-0381-077 P50/51 Outboard Bearing(X69-58) 391-0381-078 P75/76 Outboard Bearing(X69-59) 391-0381-040 P30/31 Outboard Bearing(X69-40) 391-0482-195 P315 Bushing 27x24.2x30 mm 391-0482-306 P330 Bushing 30x27.3x38 mm 391-0482-307 P365Bushing 42.5x38.5x44.5 mm 391-0482-308 P350Bushing 37x33x38 mm

Parker Commercial Part No. Description 391-2185-012 M25/50/51 P51/51 C101/102 Thrust Plate 391-2185-013 P21/30/31 M30/31 G101/102 Thrust Plate 391-2185-009 P37 Thrust Plate 391-2185-912 P50/51 C101/102 Thrust Plaet 391-2185-913 P31/51 Thrust Plate 391-2185-026 P76 Thrust Plate 391-2185-020 M76 Thrust Plate 391-2185-029 P51 Thrust Plate 391-2185-920 P75/76 Thrust Plate 391-2185-031 P31 Thrust Plate 391-2185-070 M315 Thtust Plate 391-2185-060 M365 Thrust Plate 391-2185-065 M330 Thrust Plate 391-2185-068 M350 Thrust Plate 391-2185-055 P365 Thrust Plate 391-2185-056 P330 Thrust...

P15 PUMP GEAR SET 302-2805-000, GEAR SET, BA-1007M-05, 1/2" 302-2807-000, GEAR SET, BA-1007M-07, 3/4" 302-2810-000, GEAR SET, BA-1007M-10, 1" 302-2812-000, GEAR SET, BA-1007M-12, 1-1/4" 302-2815-000, GEAR SET, BA-1007M-15, 1-1/2" 302-2817-000, GEAR SET, BA-1007M-17, 1-3/4" 302-2820-000, GEAR SET, BA-1007M-20, 2"   P20 P21 PUMP GEAR SET 312-2805-000; GEAR SET, V-1007M-05, 1/2" 312-2807-000;...

DMK20 & DML51 pumps & motors have a combination 2/4 bolt mounting flange and bi-rotational construction, giving you the option of installing as a pump or motor. Making these units the most flexible in today’s cost minded market. The DMK20’s...

DMK20 & DML51 pumps & motors have a combination 2/4 bolt mounting flange and bi-rotational construction, giving you the option of installing as a pump or motor. Making these units the most flexible in today’s cost minded market. The DMK20’s...

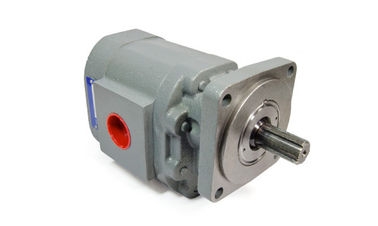

P37X Gear Pumps, which interchange with Parker PGP37X, Permco P3700, Commercial P37X, Metaris P37X. Product Description Single and Multiple pump/motor configurations are available Speeds up to 2400 rpm Pressures up to 3600 psi (248 bar) Output flows up to 70 gpm (252 lpm) @ 1800 rpm & up to 3000...

P25X Gear Pumps and M25 motor, which can be interchange with Parker PGP25X, Permco P2500, Commercial Intertech P25X, Metaris P25X gear pump and motor.

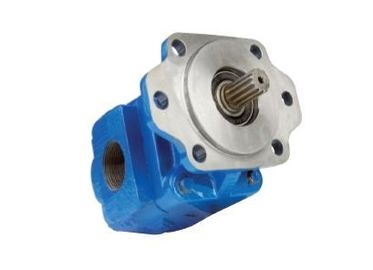

  P15 P20 P21 Gear Pumps can be interchangeable with Parker PGP015/020, Permco P1500/2100, Commercial Intertech P15, P20, Metaris P15, P20 gear pump.     P20/21 Pump Performance Data:   Gear Width (in) Output Rated Pressure (Psi) Maximun Pressure (Psi) Speed Input       (ml/r) (RPM) Power         Min Max (KW)       1/2" 16.4 3000 3600 600 2400 14.6       3/4" 24.6 21.8       1" 32.8 29       1 1/4" 41 36.3       1 1/2" 49.2 43.5       1 3/4" 57.3 2600 3000 43.4       2" 65.5 49.6       2 1/2" 81.8 61.5       Gear Width (in) Output Flow 900RPM 1200RPM 1500RPM 1800RPM 2100RPM GPM LPM GPM LPM GPM LPM GPM LPM GPM 1" 6.5 24.5 9 34 11.5 43.5 14 53 16.5 1 1/4" 8 30 11.5 43.5 14.5 55 18 68 21 1 1/2" 10 38 14 53 17.5 66 21.5 81.5 25 1 3/4" 12 45.5 16 60.5 20.5 77.5 25 94.5 29.5 2" 13.5 51 18.5 70 23.5 89 29 110 34 P20/21 Motor Performance Data: M20/21 Speed (RPM) 1" Gear Width 1 1/2" Gear Width 2"...

P365 Gear Pump Model Number   Item        Model Code/Part no. 001 P365A142FJAB20-11   3229111013   002 P365A178***AB20-7*(W/2AMTG+ASP    3229110044   003 P365A178EFAB22-11 :4080951   3229111010   004 P365A178EFAB25-11 :4080962   3229111008   005 P365A178EWAB10-11 SEWR0107  3229111006   006 P365A198EFAB17-7    3229111663   007 P365A278*CEAB17-7   3229110013   008 P365A278CEAB25-7...

P350 Gear Pump Model Number   Item          Model Code/Part No. 001 M350A1878CXEB25-7 SEWR0110     3239218008   002 M350A842VZEB10-73 :4091314   3239218046   003 M350A978**EB22-7 (XO-RV/PEC-    3239210002   004 M350A998CSEB12-7   3239219014   005 P350A1278*PFAB17-7    3239110116   006 P350A1278YEAB12-7      3239110326...
